UIYWI4876A

by Waveguide-Isolator
RFHB04G18GPI Image

RF Solution offer a wide selection of Waveguide Isolator for global customers. UIYWI4876A is a Waveguide Isolator in Frequency Range of 7.0~10.0 GHz. It is made of high quality materials under a high standard, the Bandwidth Max of this product is 20%, Insertion Loss Max is 0.25~0.40 dB and Isolation Min is 20.0~25.0 dB. The component has a good working performance and stability, it is ideal for handling a Forward Power of 100 W.

Product Specifications

Product Details

  • Part Number
    UIYWI4876A
  • Description
    7.0 to 10.0 GHz Waveguide Isolator

General Parameters

  • Frequency Range
    7.0~10.0 GHz
  • Bandwidth Max
    20%
  • Insertion Loss Max
    0.25~0.40 dB
  • Isolation Min
    20.0~25.0 dB
  • Forward Power
    100 W
  • Reverse Power
    30 W
  • VSWR Max
    1.20~1.25
  • Impedance
    50 Ω
  • Connector Type
    WR112(BJ84)

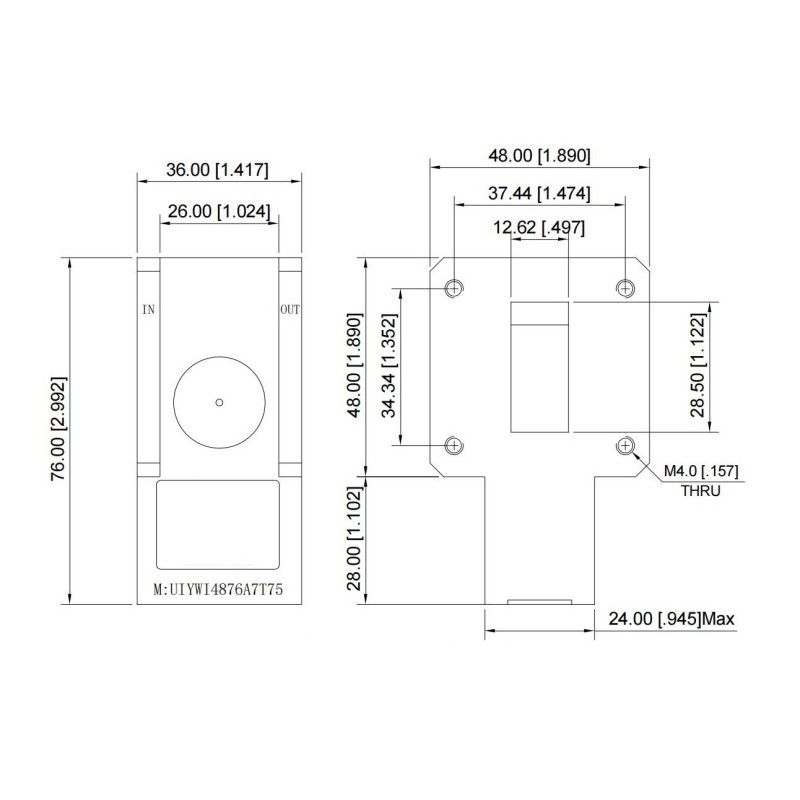

  • Size
    48×76×36 mm
  • Weight
    /
  • Operating Temperature
    -40~+85 ℃
  • Storage Temperature
    /
  • ROHS Compliant
    Yes
