UIYMI78A

by Microstrip-Isolator
RFHB04G18GPI Image

RF Solution offer a wide selection of Microstrip Isolator for global customers. UIYMI78A is a Microstrip Isolator in Frequency Range of 7.0~12.0 GHz. It is made of high quality materials under a high standard, the Bandwidth Max of this product is 40%, Insertion Loss Max is 0.50~0.60 dB and Isolation Min is 18.0~20.0 dB. The component has a good working performance and stability, it is ideal for handling a Forward Power of 15 W.

Product Specifications

Product Details

  • Part Number
    UIYMI78A
  • Description
    7.0 to 12.0 GHz Microstrip Isolator

General Parameters

  • Frequency Range
    7.0~12.0 GHz
  • Bandwidth Max
    40%
  • Insertion Loss Max
    0.50~0.60 dB
  • Isolation Min
    18.0~20.0 dB
  • Forward Power
    15 W
  • Reverse Power
    5 W
  • VSWR Max
    1.25~1.30
  • Impedance
    50 Ω
  • Connector Type
    Microstrip

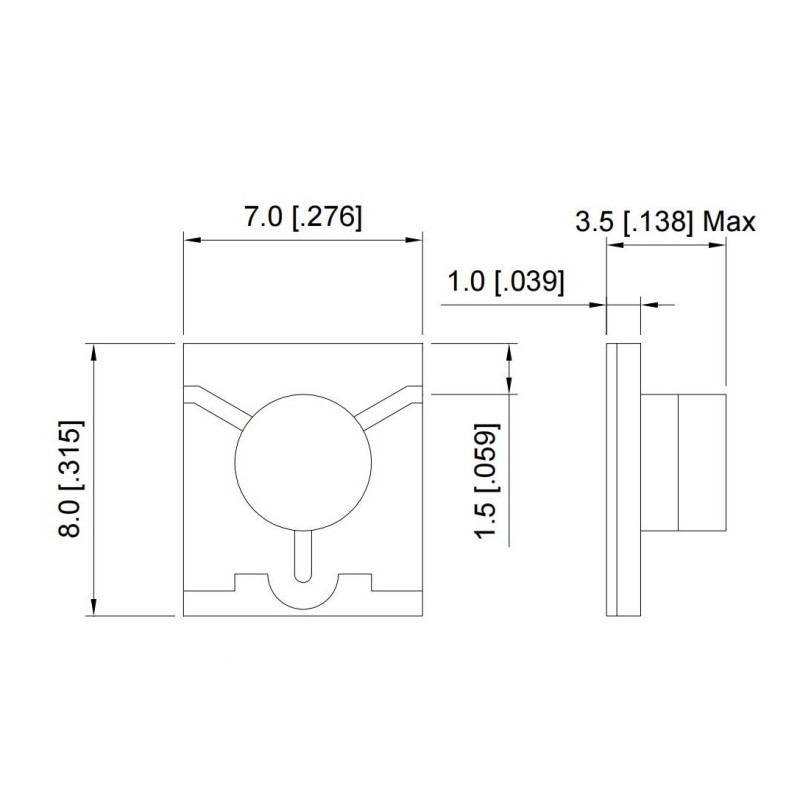

  • Size
    7×8×3.5 mm
  • Weight
    /
  • Operating Temperature
    -55~+85 ℃
  • Storage Temperature
    /
  • ROHS Compliant
    Yes
