UIYBCI3538B

by Broadband-Isolator
RFHB04G18GPI Image

RF Solution offer a wide selection of Broadband Isolator for global customers. UIYBCI3538B is a Broadband Isolator in Frequency Range of 400~470 MHz. It is made of high quality materials under a high standard, the Bandwidth Max of this product is 100%, Insertion Loss Max is 0.40 dB and Isolation Min is 20.0 dB. The component has a good working performance and stability, it is ideal for handling a Forward Power of 300/100 W.

Product Specifications

Product Details

  • Part Number
    UIYBCI3538B
  • Description
    400 to 470 MHz Broadband Isolator

General Parameters

  • Frequency Range
    400~470 MHz
  • Bandwidth Max
    100%
  • Insertion Loss Max
    0.40 dB
  • Isolation Min
    20.0 dB
  • Forward Power
    300/100 W
  • Reverse Power
    30 W
  • VSWR Max
    1.25
  • Impedance
    50 Ω
  • Connector Type
    SMA-F/N-F

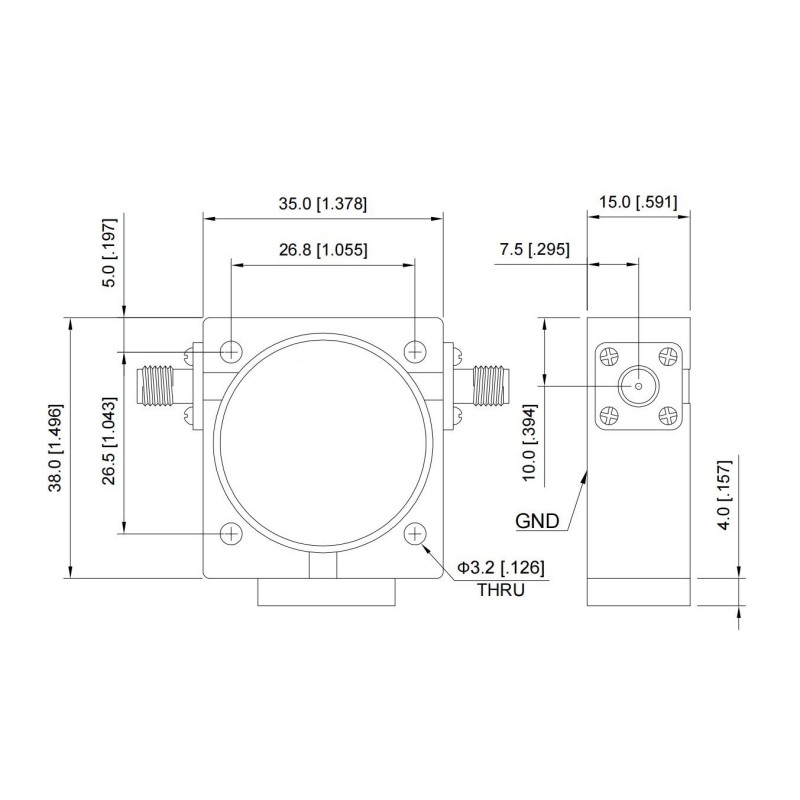

  • Size
    35×38×15 mm
  • Weight
    /
  • Operating Temperature
    -30~+70 ℃
  • Storage Temperature
    /
  • ROHS Compliant
    Yes
