UIYBMI129A

by Microstrip-Isolator
RFHB04G18GPI Image

RF Solution offer a wide selection of Microstrip Isolator for global customers. UIYBMI129A is a Microstrip Isolator in Frequency Range of 6.0~18.0 GHz. It is made of high quality materials under a high standard, the Bandwidth Max of this product is 100%, Insertion Loss Max is 1.00~1.30 dB and Isolation Min is 14.0~15.0 dB. The component has a good working performance and stability, it is ideal for handling a Forward Power of 16 W.

Product Specifications

Product Details

  • Part Number
    UIYBMI129A
  • Description
    6.0 to 18.0 GHz Microstrip Isolator

General Parameters

  • Frequency Range
    6.0~18.0 GHz
  • Bandwidth Max
    100%
  • Insertion Loss Max
    1.00~1.30 dB
  • Isolation Min
    14.0~15.0 dB
  • Forward Power
    16 W
  • Reverse Power
    2 W
  • VSWR Max
    1.60~1.70
  • Impedance
    50 Ω
  • Connector Type
    Microstrip

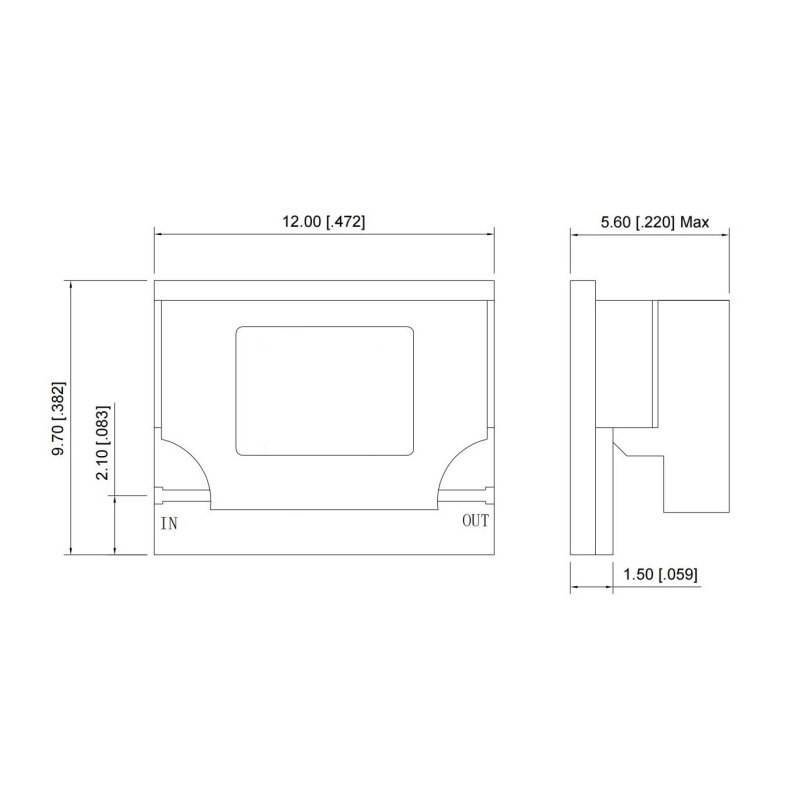

  • Size
    12×9.7×5.6 mm
  • Weight
    /
  • Operating Temperature
    -55~+85 ℃
  • Storage Temperature
    /
  • ROHS Compliant
    Yes
