UIYDDI11256A

by Dual-Junction-Isolator
RFHB04G18GPI Image

RF Solution offer a wide selection of Dual Junction Isolator for global customers. UIYDDI11256A is a Dual Junction Isolator in Frequency Range of 130~900 MHz. It is made of high quality materials under a high standard, the Bandwidth Max of this product is 40%, Insertion Loss Max is 0.60~1.40 dB and Isolation Min is 32.0~46.0 dB. The component has a good working performance and stability, it is ideal for handling a Forward Power of 300 W.

Product Specifications

Product Details

  • Part Number
    UIYDDI11256A
  • Description
    130 to 900 MHz Dual Junction Isolator

General Parameters

  • Frequency Range
    130~900 MHz
  • Bandwidth Max
    40%
  • Insertion Loss Max
    0.60~1.40 dB
  • Isolation Min
    32.0~46.0 dB
  • Forward Power
    300 W
  • Reverse Power
    30 W
  • VSWR Max
    1.20~1.40
  • Impedance
    50 Ω
  • Connector Type
    TAB

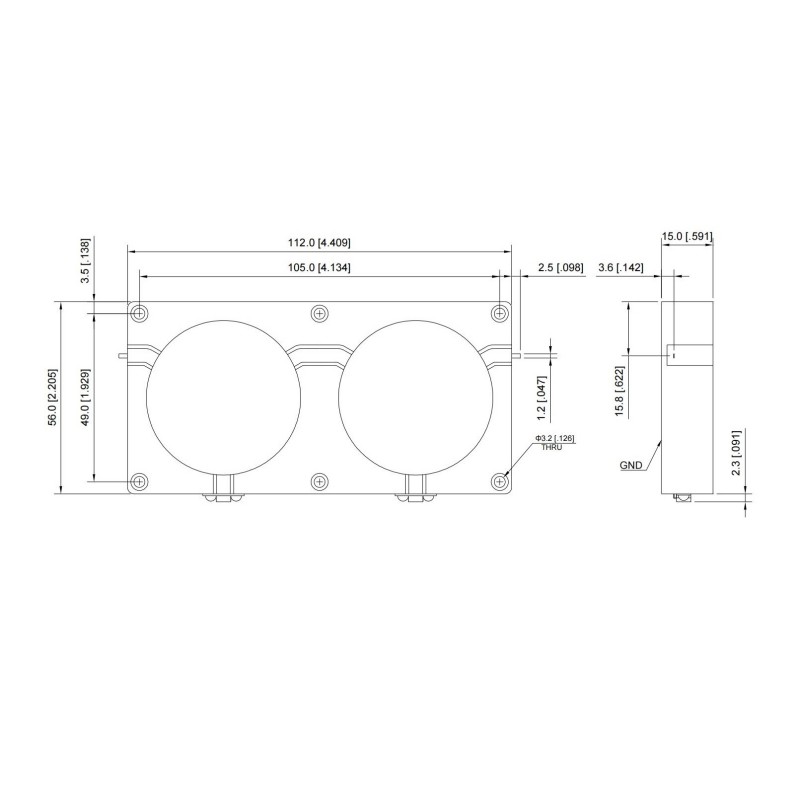

  • Size
    112×56×15 mm
  • Weight
    /
  • Operating Temperature
    -30~+70 ℃
  • Storage Temperature
    /
  • ROHS Compliant
    Yes
