UIYBCI3434F

by Broadband-Isolator

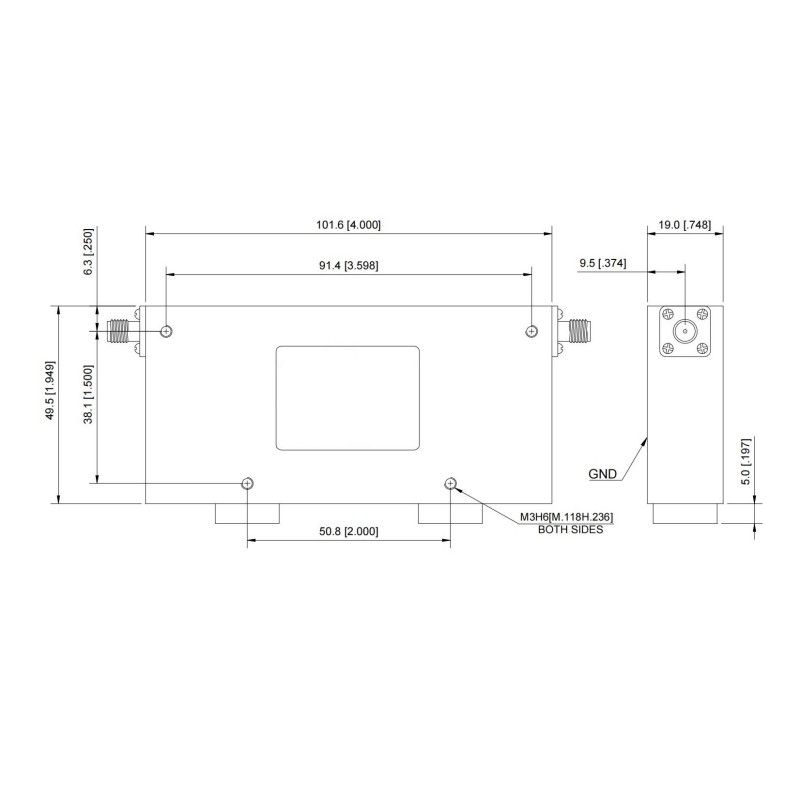

RFHB04G18GPI Image

RF Solution offer a wide selection of Broadband Isolator for global customers. UIYBCI3434F is a Broadband Isolator in Frequency Range of 1225~1875 MHz. It is made of high quality materials under a high standard, the Bandwidth Max of this product is 100%, Insertion Loss Max is 0.60 dB and Isolation Min is 16.0 dB. The component has a good working performance and stability, it is ideal for handling a Forward Power of 100/200 W.

Product Specifications

Product Details

  • Part Number
    UIYBCI3434F
  • Description
    1225 to 1875 MHz Broadband Isolator

General Parameters

  • Frequency Range
    1225~1875 MHz
  • Bandwidth Max
    100%
  • Insertion Loss Max
    0.60 dB
  • Isolation Min
    16.0 dB
  • Forward Power
    100/200 W
  • Reverse Power
    30 W
  • VSWR Max
    1.40
  • Impedance
    50 Ω
  • Connector Type
    SMA-F/N-F
  • Size
    34×34×22 mm
  • Weight
    /
  • Operating Temperature
    0~+60 ℃
  • Storage Temperature
    /
  • ROHS Compliant
    Yes
