UIYDDI1716A

by Dual-Junction-Isolator
RFHB04G18GPI Image

RF Solution offer a wide selection of Dual Junction Isolator for global customers. UIYDDI1716A is a Dual Junction Isolator in Frequency Range of 5.0~25.0 GHz. It is made of high quality materials under a high standard, the Bandwidth Max of this product is 40%, Insertion Loss Max is 0.60~1.20 dB and Isolation Min is 36.0~46.0 dB. The component has a good working performance and stability, it is ideal for handling a Forward Power of 30/65 W.

Product Specifications

Product Details

  • Part Number
    UIYDDI1716A
  • Description
    5.0 to 25.0 GHz Dual Junction Isolator

General Parameters

  • Frequency Range
    5.0~25.0 GHz
  • Bandwidth Max
    40%
  • Insertion Loss Max
    0.60~1.20 dB
  • Isolation Min
    36.0~46.0 dB
  • Forward Power
    30/65 W
  • Reverse Power
    5 W
  • VSWR Max
    1.20~1.45
  • Impedance
    50 Ω
  • Connector Type
    TAB

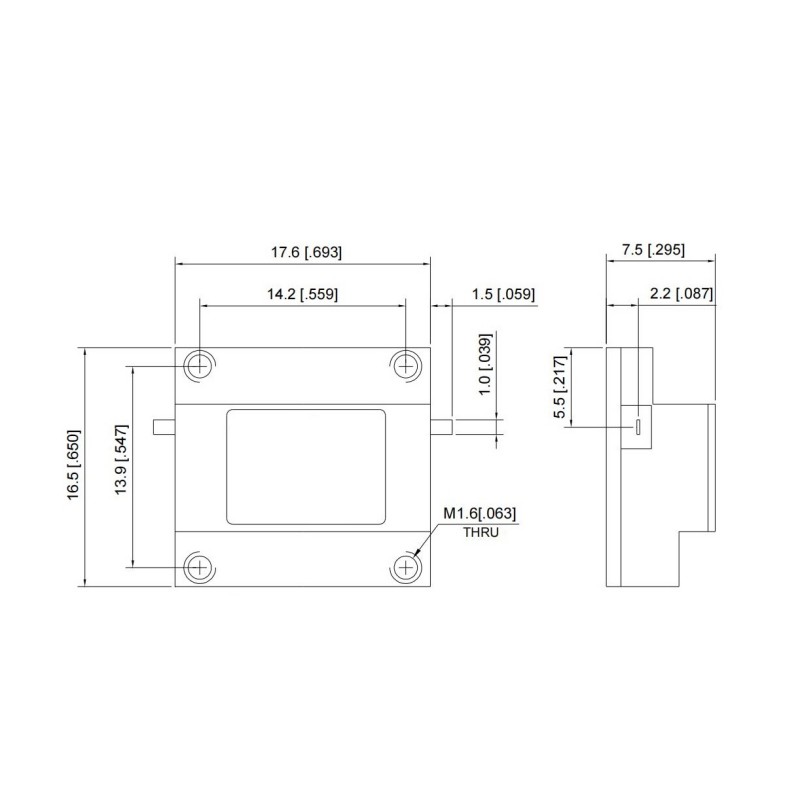

  • Size
    17.6×16.5×7.5 mm
  • Weight
    /
  • Operating Temperature
    -40~+85 ℃
  • Storage Temperature
    /
  • ROHS Compliant
    Yes
