UIYDDI3819A

by Dual-Junction-Isolator
RFHB04G18GPI Image

RF Solution offer a wide selection of Dual Junction Isolator for global customers. UIYDDI3819A is a Dual Junction Isolator in Frequency Range of 0.6~5.0 GHz. It is made of high quality materials under a high standard, the Bandwidth Max of this product is 30%, Insertion Loss Max is 0.50~1.20 dB and Isolation Min is 36.0~50.0 dB. The component has a good working performance and stability, it is ideal for handling a Forward Power of 100 W.

Product Specifications

Product Details

  • Part Number
    UIYDDI3819A
  • Description
    0.6 to 5.0 GHz Dual Junction Isolator

General Parameters

  • Frequency Range
    0.6~5.0 GHz
  • Bandwidth Max
    30%
  • Insertion Loss Max
    0.50~1.20 dB
  • Isolation Min
    36.0~50.0 dB
  • Forward Power
    100 W
  • Reverse Power
    30 W
  • VSWR Max
    1.15~1.40
  • Impedance
    50 Ω
  • Connector Type
    TAB

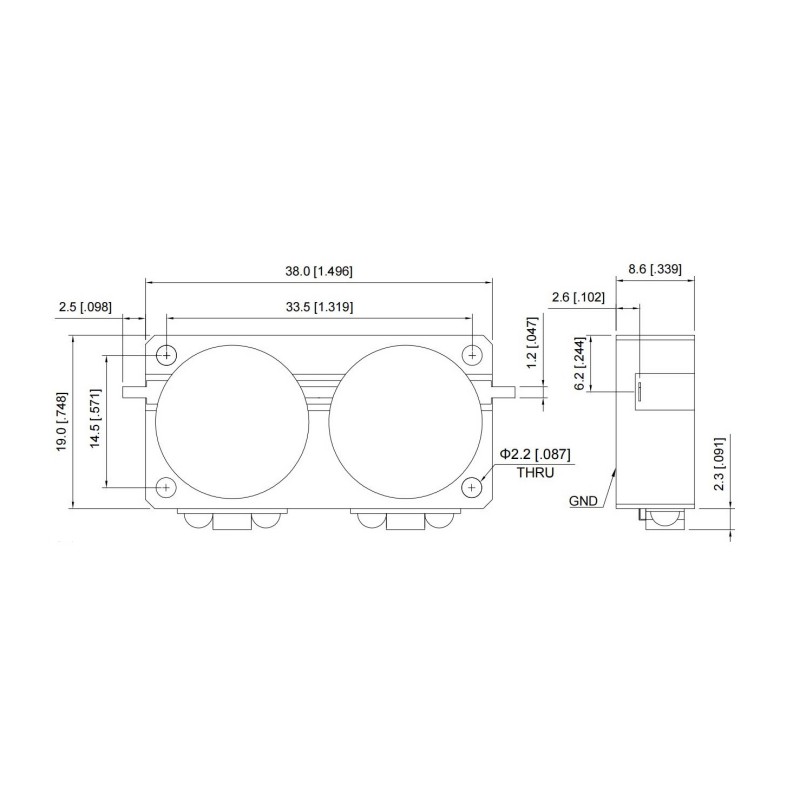

  • Size
    38×19×8.2 mm
  • Weight
    /
  • Operating Temperature
    -40~+85 ℃
  • Storage Temperature
    /
  • ROHS Compliant
    Yes
